Tilta Nucleus-M Wireless Lens Control System Partial Kit IV

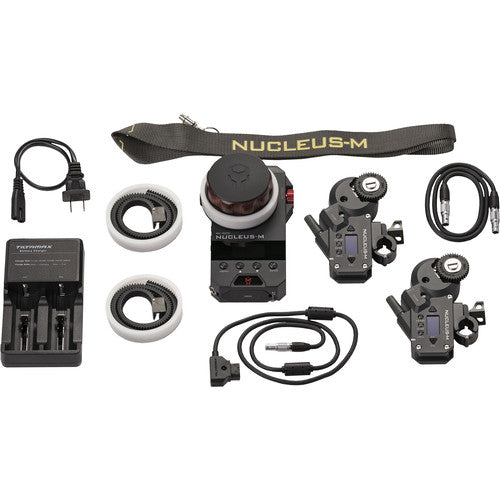

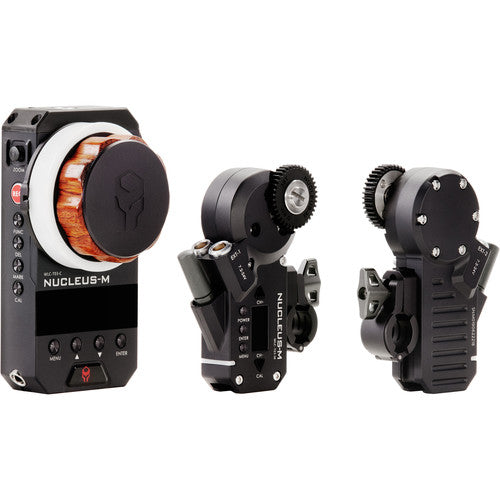

\n\n\n\nThe ?Tilta Nucleus-M Wireless Lens Control System Partial Kit IV ?contains the essential elements for pulling focus and iris wirelessly. The kit includes the Nucleus-M FIZ hand unit controller, two Nucleus-M motors, two removable lens belts (DSLR Lens Follow Focus Adapters), two motor power cables, two marking disks for the hand unit, a lanyard for the hand unit, and a battery charger unit. The system enables an AC to pull focus and iris on a prime lens. If you are using a lens that does not have standard cine-style gears, then use the included lens belts to add gears to your lens.\n\nThis partial kit is a dual-axis system, typically controlling focus and iris, but the hand unit will allow you to control an additional motor (not included) for zoom control when using a zoom lens. The system can wirelessly pull focus from up to 1000' away, and the batteries can power the hand unit for approximately 10 hours on a single charge (batteries not included). The first motor is powered via the included D-Tap to 7-pin cable; the second motor daisy-chains to the fist via the 7-pin to 7-pin cable for power. The lanyard attaches to the hand control unit, allowing you to wear it around your neck.\n\n\n\n\nNote:\nPlease note that batteries are not included and must be sourced separately.\n\n\n\n\nTilta Nucleus-M FIZ Hand Unit\n\n\n\nThe ?Tilta Nucleus-M FIZ Hand Unit ?provides three-channel wireless focus, iris, and/or zoom control as part of the Nucleus-M lens control system. The hand unit features a large wood-edged focus knob, a zoom joystick, an iris wheel, and a backlit LED display window.\n\nSelect from low, medium, and maximum transmission ranges to best suit your working distance and battery reserves. The Nucleus-M FIZ Hand Unit's choice of 15 2.4 GHz channels minimizes the chance of interference in high-traffic areas. Set up to 10 soft stops with vibration for focus pulls, and calibrate lenses automatically or manually.\n\nWireless run/stop is available for select cameras using the hand unit and separately available cables. The hand unit is powered by two separately available lithium-ion batteries and can operate for up to 10 hours on a single charge.\n\n\n\n\nNote:\nPlease note that batteries are not included and must be sourced separately.\n\n\n\n >Features\n\n\n

\n
• 3-channel wireless lens control unit
\n
• Control focus, iris, and/or zoom
\n
• Short-, medium-, and long-range transmission options
\n
• 15-channel selection minimizes outside interference
\n
• Powered via two 18650 rechargeable lithium-ion batteries (not included)
\n
• Up to 10-hour runtime on a single charge
\n
• Ambidextrous design with large wood-edged knob
\n

\n\n\n\n\n\n\n\nTilta Nucleus-M FIZ Lens Control Motor\n\n\n\nThe compact ?Tilta Nucleus-M FIZ Lens Control Motor ?features an integrated motor drive, eliminating the space of a separate drive box and enabling a quicker setup. Power the motor using a separately available D-Tap cable and power source, or daisy-chain to another motor using a 7-pin cable.\n\nThe Nucleus-M wireless motor includes a cine standard 0.8 Mod drive gear and a 19mm rod adapter with a bushing for mounting onto a 15mm rod. The motor features automatic or manual calibration, a display window, and high, medium, and low torque settings.\n\n\n\n\n >Features\n\n\n

\n
• Brushless motor with an integrated motor drive
\n
• Cine-lens standard 0.8 Mod, 35-tooth, 32-pitch gear
\n
• Motor clamps onto 19mm or 15mm rods (with included bushing)
\n
• Power via separately available D-Tap cable or daisy-chain to additional motors
\n
• Automatic and manual calibration
\n
• For focus, iris, or zoom control
\n
• High, medium, and low torque settings
\n
• Status display window
\n

\n\n\n\n\n\n\n\nTilta DSLR Lens Follow Focus Adapter\n\n\n\nUse this ?DSLR Lens Follow Focus Adapter ?from ?Tilta to tie around your DSLR lens and control focus with any of Tilta's follow focus systems such as the Nucleus-Nano or Nucleus-M. The adjustable, zip tie-style adapter ring is made of silicone and plastic and ties around most DSLR lenses. The teeth lock into the follow focus motor's gear for smooth adjustments.\n\n\n\n\n\n\nTilta Nucleus-M D-Tap to 7-Pin Motor Power Cable\n\n\n\nThis 23" ?Nucleus-M D-Tap to 7-Pin Motor Power Cable ?from ?Tilta ?is designed to power your Nucleus-M lens control motor using a D-Tap power source.\n\nAfter powering one motor with this cable, other motors may be daisy-chained to each other.\n\n\n\n\n\n\nTilta Nucleus-M Follow Focus Marking Disk\n\n\n\nThe ?Tilta Follow Focus Marking Disk is compatible with the Nucleus-M FIZ hand unit. Use this white plastic disk for creating custom focus marks used for pulling focus.\n\n\n\n\n\n\nTilta Lanyard for Nucleus-M FIZ Hand Unit\n\n\n\nThe ?Tilta Nucleus-M Lanyard is compatible with the Nucleus-M FIZ control hand unit. Use this strap to carry the control unit around your neck or to drape it from a stand. Lanyard features include a swiveling quick release clip and a wide nylon strap.\n\n\n\n\n\n\nTilta Nucleus-M Battery Charger\n\n\n\nThe ?Tilta Nucleus-M Battery Charger ?can charge one to four batteries used in the handset and handles of the Nucleus-M wireless lens control system. This versatile charger can be powered using AC, 5V USB, or 12V vehicle power.\n\nCompatible with 18650 lithium-ion and select other batteries, the charger features LED status lights and spring-loading for a secure battery fit.\n\n\n\n\n >Compatible Batteries\n\n26650, 22650\n18650, 18490, 18350\n17670, 17500\n16340, 14500, 10400\nRCR123\nNiMH/NiCd: AA, AAA, AAAA, C\n\n\n\n\n
