Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card

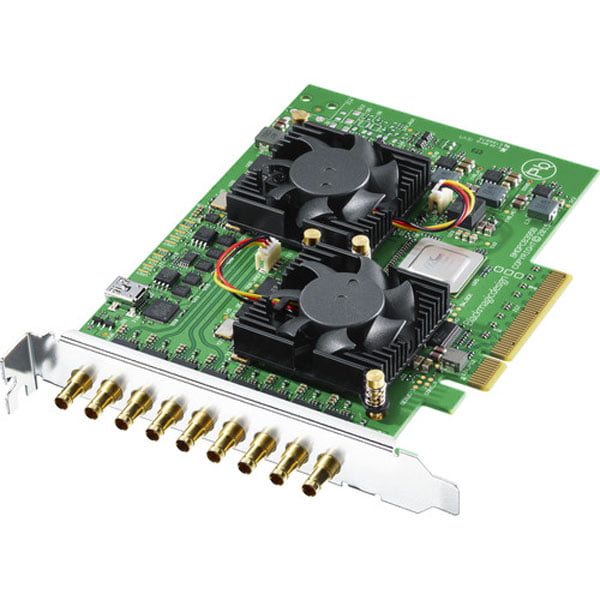

\n\n\n\nThe ?Blackmagic Design DeckLink Quad 2 ?is an 8-lane PCIe card that features eight bi-directional 12-bit SD/HD/3G-SDI connectors that are independently configurable to provide any combination of eight capture or playback channels at up to 1080p60. The card supports compressed video formats such as ProRes and DNxHD, as well as uncompressed 10-bit 4:2:2 and 4:4:4 video, making it ideal for use in both live broadcast and post production. It is compatible with Mac, Windows, and Linux computers and is supported by a wide range of software applications. For use with applications that don't capture video on their own, Blackmagic's Media Express software is included, allow you to capture, organize, and manage your media.\n\n\n\n\n\n\nKey Features\n\n\n

\n
• 8x Bi-directional 12-bit SD/HD/3G-SDI connectors
\n
• 8-lane PCIe interface compatible with Mac, Windows, and Linux based workstations and servers
\n
• Each SDI input and output can be a different video standard as they are all completely independent
\n
• Single Blackburst/Tri-Sync reference input
\n
• Supports uncompressed 10-bit 4:2:2 and 10-bit 4:4:4 signals
\n
• Cross-conversion between 720p and 1080p on video capture
\n
• SD up-conversion to 720p or 1080p on video capture
\n
• HD to SD down-conversion on video capture or playback
\n
• Supports 16 channels of embedded audio per input/output
\n

\n\n\n\n\n\nIncluded Software\n\nMedia Express\nDisk Speed Test\nLiveKey\nBlackmagic Desktop Video Utility\nDrivers for Mac OS X, Windows 8/10, and Linux\n\n\n\n\nSupported Software Applications\n\n\nSupported Applications Include:\nDaVinci Resolve\nFusion\nApple Final Cut Pro X\nAdobe Premiere Pro CC\nAdobe After Effects CC\nAdobe Photoshop CC\nAvid Media Composer\nAvid Pro Tools\nAvid Symphony\nAvid News Cutter\nSteinberg Cubase\nSteinberg Nuendo\nNuke\nTools On Air just:in & live:cut & just:play & just:live\nSoftron OnTheAir\nMovieRecorder and OnTheAir CG\nFlash Media Live Encoder\nWirecast\nLivestream Procaster\nResolume Avenue 4\nSony Vegas Pro\nCorel VideoStudio Pro X4\nCyberLink Power Director\nMAGIX Video Pro X4\nVidblaster Pro & Studio & Broadcast\nUniplay\nPlaybox AirBox\nCasparCG\nMagicsoft CG\nXsplit Broadcaster\nImagine Communications Velocity & InfoCaster\n\n\n\n\n\n
