AV Matrix 16-Channel 3G-SDI Multiviewer and Switcher (1 RU)

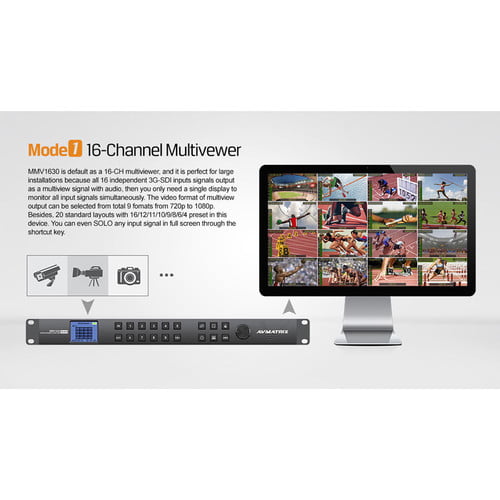

The 1 RU 16-Channel 3G-SDI Multiviewer and Switcher from AV Matrix features two modes in one device. Mode 1 acts as a 16-channel multiviewer, with 16 independent 3G-SDI inputs. The video format of multiview outputs can select from nine formats from 720p to 1080p and also include 20 standard layouts.

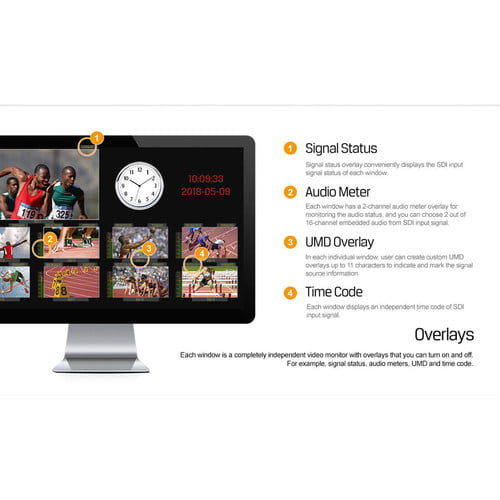

The signals are view simultaneously on one display and also each window is completely. Independent with overlays such as signal status, audio meter, UMD, and time code.

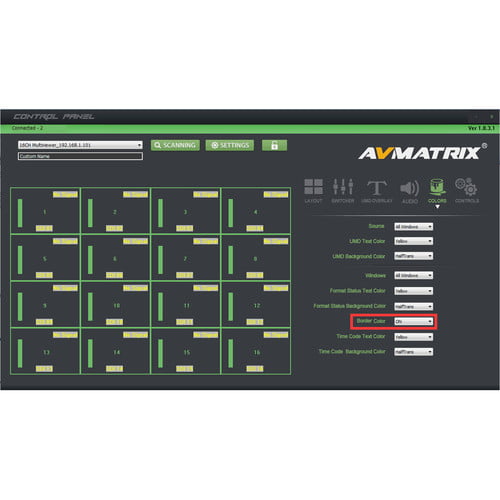

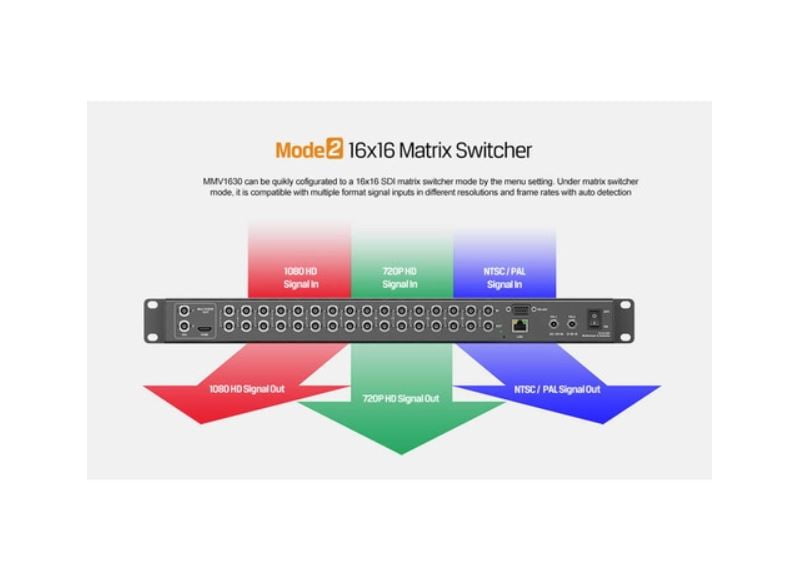

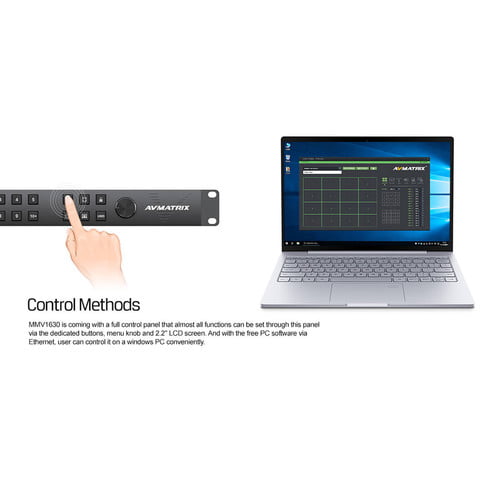

Mode 2 turns this device into a 16 x 16 SDI matrix switcher, compatible with multiple format signal inputs in different resolutions and frame rates with audio detection. The MMV1630 can be controlled using the buttons, knob, and LCD screen on the front panel, or with a PC software via Ethernet.

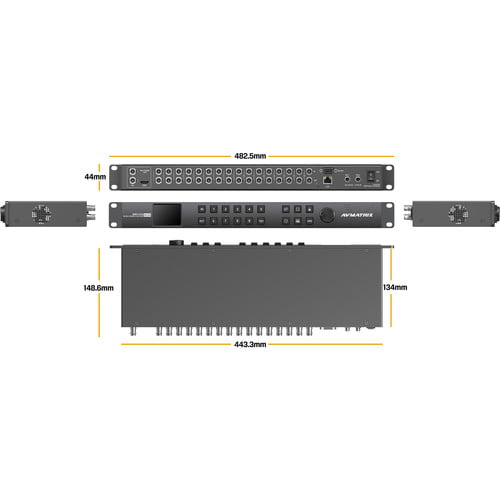

A compact 1 RU design makes it suitable for any live broadcast or post production such as OB vans, broadcast control rooms, and studios.

16 x 3G-SDI auto-detected inputs with loop outputs2 x 3G-SDI and 1 x HDMI multiview scaling outputs with audioFull screen and 20 preset layouts with clock displayDual power design, redundant power
