PROMAGE CABLE SDI TO SDI 40M

Product Description High-Fidelity Broadcast Signal Integrity Across Extended Spaces Maintaining absolute signal fidelity over long distances is one of the most critical challenges in live broadcasting, commercial studio wiring, and multi-camera stage setups. The Promage SDI to SDI 40M Cable is engineered to serve as a premium digital infrastructure solution, providing a continuous, uncompromised data path across an impressive 40-meter (approximately 131-foot) distance. While standard consumer patches or low-grade coaxial wires drop data packets, introduce timing jitter, or suffer complete signal collapse at this length, this professional-grade cable delivers crisp, real-time video transmission.

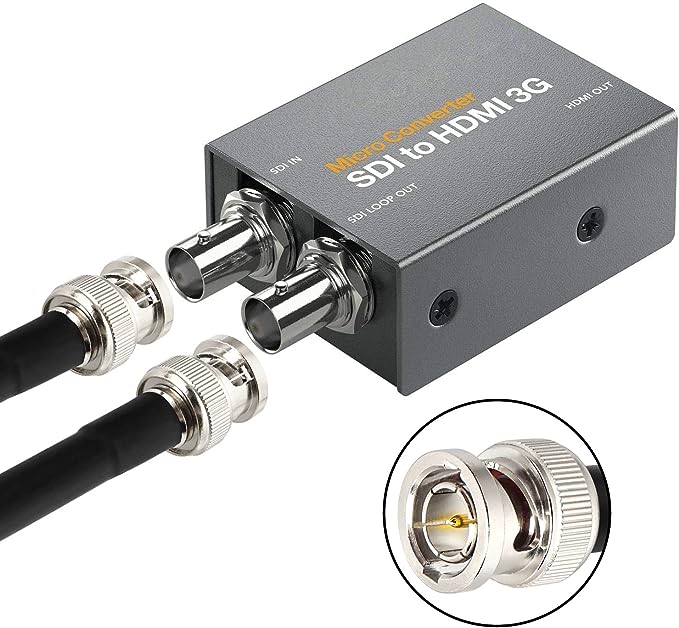

This single, continuous 40-meter run makes it a vital component for large production venues, house of worship broadcasts, sports fields, and multi-level control rooms. By deploying this high-spec link, production teams can route pristine video feeds directly from remote camera positions to central production switchers, hardware micro-converters, or PCIe capture cards. This clean, single-cable method completely eliminates the need for complex intermediate signal refreshers or external line amplifiers, maximizing system dependability.

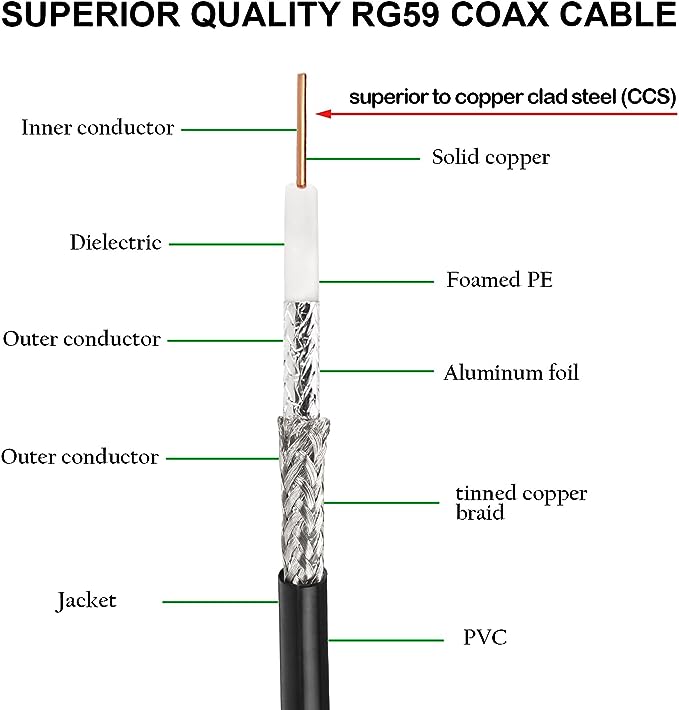

Precision RG59 Structural Engineering and Material Craftsmanship Deep within the architectural blueprint of the Promage 40-meter cable lies a high-performance RG59 coaxial foundation. Unlike baseline commercial cables that cut costs by utilizing brittle copper-clad steel (CCS) cores, this broadcast-grade cable is built around a solid bare copper inner conductor. Solid pure copper provides significantly lower electrical resistance and enhanced thermal stability, ensuring that sensitive high-frequency digital waves pass through the core with minimum line attenuation and maximum bandwidth retention over the full 40-meter line.



Surrounding this premium central conductor is a high-density, foamed polyethylene (PE) dielectric insulation matrix. This specialized insulating layer maintains a strict, uniform concentric distance between the inner pure copper core and the outer shielding layers. By preserving this precise structural geometry, the cable achieves a constant 75-ohm characteristic impedance.



This strict uniformity mitigates internal wave reflections and slashes return loss, which is absolutely essential for transporting high-bitrate digital video payloads without data corruption or timing sync errors. Aggressive Multilayer Shielding Defeats Electronic Noise Modern production stages, control rooms, and commercial sets are crowded with disruptive electromagnetic interference (EMI) and radio frequency interference (RFI). Wireless intercom arrays, high-output lighting ballasts, heavy power conduits, and mobile devices create an electronically noisy workspace.



To guard your video feeds against external disruption, the Promage SDI cable incorporates a heavy-duty, dual-layer outer conductor shielding network. The primary defense consists of a premium aluminum foil wrap providing complete 100% coverage against high-frequency fields. Right above the foil layer is a tightly woven tinned copper braided grid.



This heavy braid grounds out low-frequency environmental hums while reinforcing the cable’s physical pulling strength. Working together, this shielding matrix seals the inner core away from external signal cross-talk and ingress. This high level of protection ensures an ultra-clean, noise-free picture even when routed parallel to high-voltage building lines or heavy power racks.

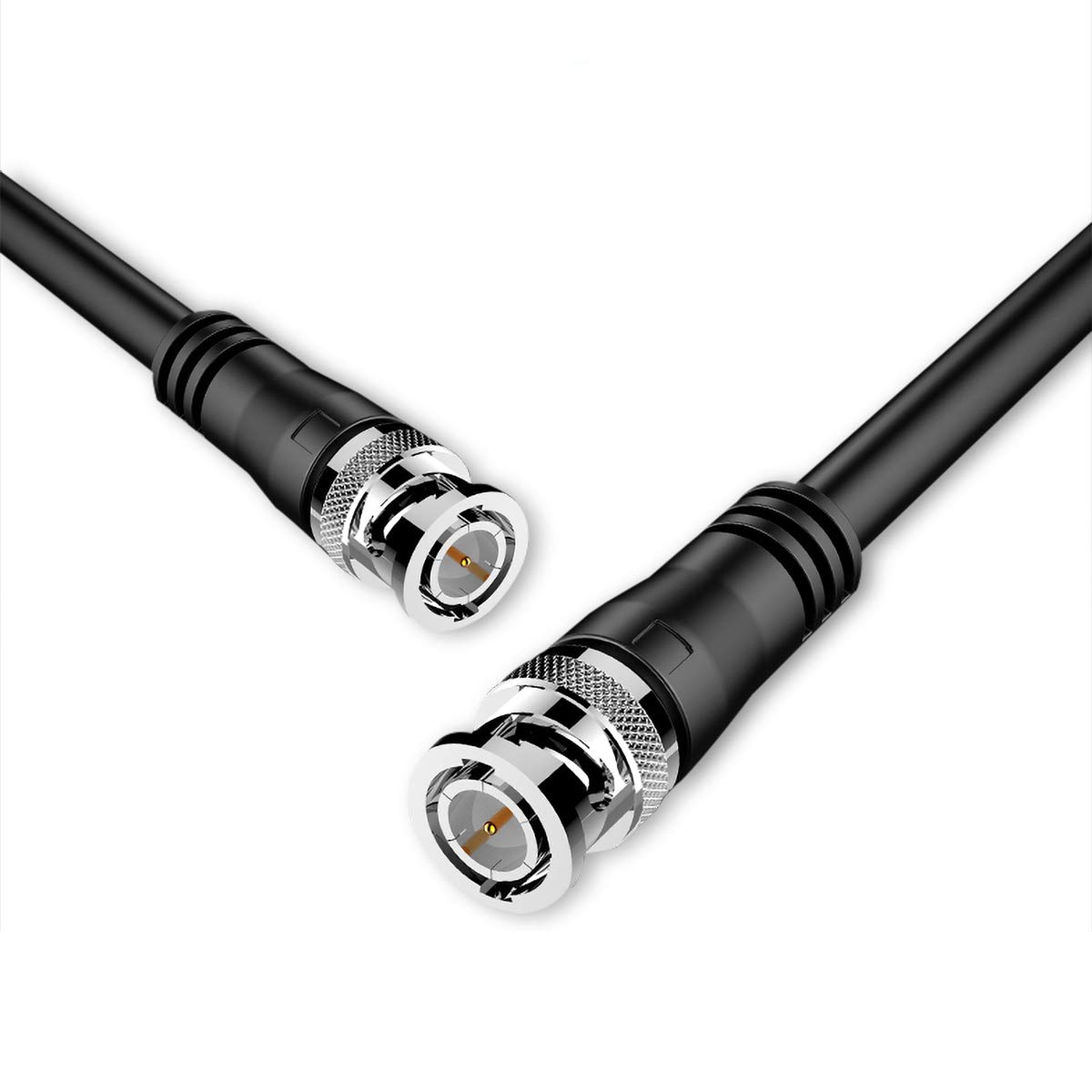

Heavy-Duty Twist-Lock Connectors and Field-Ready Ruggedness A professional infrastructure line is only as dependable as its termination interfaces. The Promage 40m cable features heavy-duty BNC connectors built from durable, corrosion-resistant metal alloys. These connectors utilize a precise mechanical twist-lock locking collar.



Once aligned and twisted into place on a compatible device, it forms an unyielding physical bond that completely eliminates the risk of accidental cable disconnection caused by physical snags, stage movement, or camera panning. Protecting the entire internal matrix is a thick, highly flexible Polyvinyl Chloride (PVC) protective outer jacket. This specialized outer skin balances rugged armor characteristics with elastic pliability.



It shields the internal components from sharp bends, abrasions, crushing, and environmental moisture, while remaining smooth enough to resist tangling or kinking during rapid setup and teardown cycles. For system integrators and live production engineers, this cable is a definitive choice for elite long-range reliability. Key Features Continuous 40-Meter Operational Reach: Effortlessly links remote cameras and distant hardware hubs without mid-line signal boosters or data drops.



Universal SDI Protocol Integration: Rated to handle HD-SDI and 3G-SDI protocol standards smoothly for absolute production workflow flexibility. Solid Bare Copper Core Conductor: Delivers excellent electrical conductivity and significantly lower attenuation compared to low-grade steel alternatives. True 75-Ohm Characteristic Impedance: Paired with a specialized foamed PE dielectric insulation layer to maintain uniform geometry and prevent signal return loss.



Dual-Layer Foil and Braid Shielding: Combines a 100% coverage aluminum foil wrap with a dense tinned copper braid to offer immunity against EMI and RFI noise. Industrial Twist-Lock BNC Ends: Built with a secure mechanical locking system that prevents accidental pull-outs and maintains an unbroken physical connection. Oxidation-Proof Internal Contact Pins: Features precision-layered contact pins that maximize data transfer and defend against rust from atmospheric humidity.



Flexible and Durable PVC Outer Jacket: Formulated to withstand heavy wear, friction, moisture, and extreme bending without straining internal paths. Zero-Latency Video Sync: Keeps uncompressed audio and video data perfectly locked in real-time sync, ideal for live monitor feeds. Professional Broadcast-Grade Build: Engineered specifically for television studios, live streaming rigs, commercial AV distributions, and high-end cinema monitoring setups.
