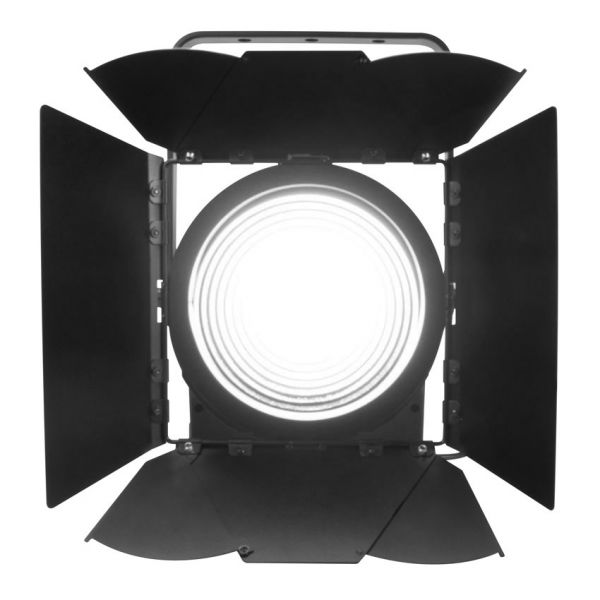

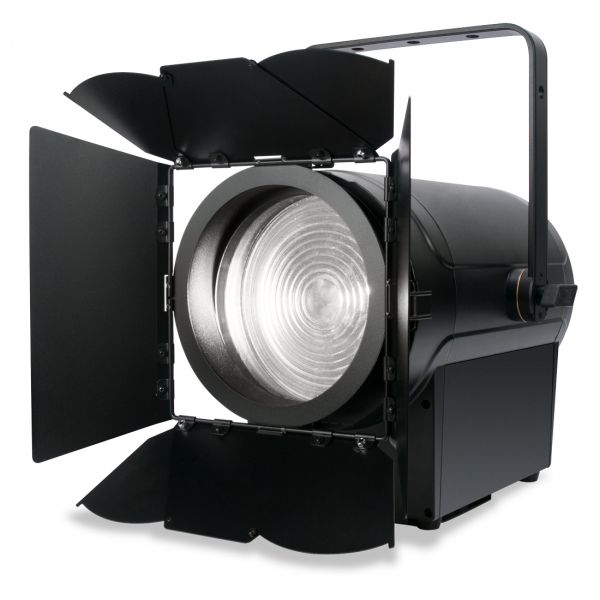

ELATION KL FRESNEL 8 CW

FEATURES

5,600K Cool White LED Fresnel Luminaire 350W Single Source LED Manual and DMX Controlled Dimming Quick Single Press Light Output for Focusing 11� - 56� Wide Motorized Zoom Including 8-Leaf Barn Doors and Gel Frame Holder Adjustable Refresh Frequency Silent Operation Variable Dimming Curves, Dim Modes and Dimming Delays Flicker Free Operation for Broadcast TV and Film

SOURCE

350W Cool White LED Engine 14,000 Total Output Lumens, 5,600K, 97CRI 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

Up to 14,000 Total Lumen Output 16,762 LUX 1,557 FC @ 3m (9.8�) (Min. Zoom) 1462 LUX 136 FC @ 3m (9.8�) (Max. Zoom) Zoom Range 11� - 56� Beam Angle 11� - 56.2� Field Angle 17.9� - 77�

EFFECTS

High Speed Electronic Shutter and Strobe Variable Dimming Curves, Dim Modes and Dimming Delays

COLOR

5,600K Cool White LED

CONTROL / CONNECTIONS

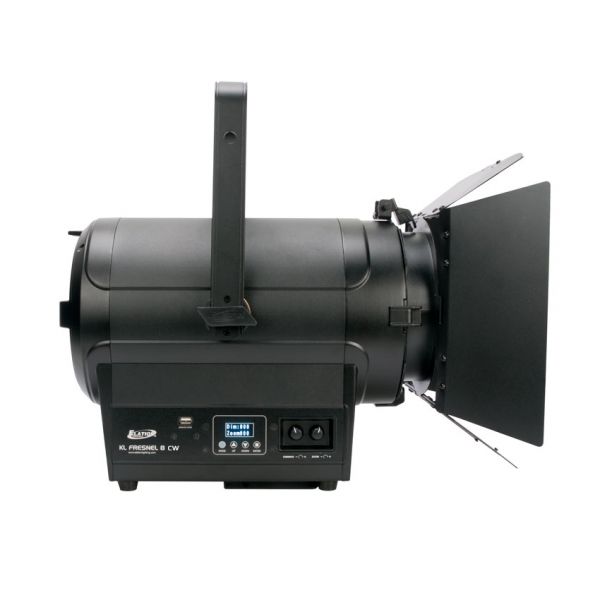

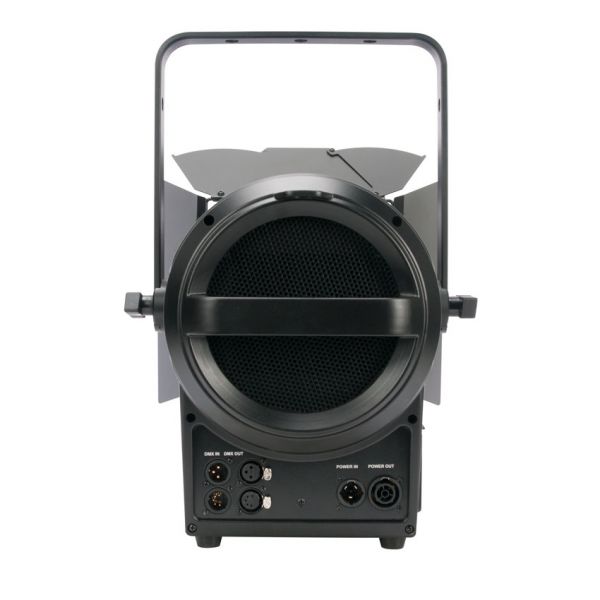

5 DMX Channels Modes (2 / 3 / 4 / 6 / 7) DMX Support RDM (Remote Device Management) Adjustable Refresh Frequency (900�25,000Hz) 8 / 16 Bit Dimming Control 4 Button and 2 Dial Control Panel Manual and DMX Controlled Dimming 180� Reversible LCD Menu Display USB Firmware Service Port Locking 3/5pin XLR DMX In/Out and Power In/Out Connection

SIZE / WEIGHT

Length: 445mm (17.5�) Width: 328mm (12.9�) Vertical Height: 456mm (18.0�) Weight: 12.7 kg (28.0 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz 360W Max Power Consumption -10�C to 45�C (14�F to 113�F) Power Linking: 3Pcs @ 110V / 6Pcs @ 240V

INCLUDED ITEMS

Gel Frame and Rotating Barn Doors
