AVMATRIX Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display

The AVMATRIX Shark S4 PLUS, available at Awpro, boasts a 10.1" Full HD IPS display for multiview and program feeds. Capture and stream via USB-C with software like OBS or Zoom, record to SSD or SD card, and live stream through Ethernet using RTMP or SRT. Enjoy professional features including enhanced chroma key, audio mixing, and multiple interfaces with advanced effects.

Built-in USB-C port can be used to connect the switcher to a computer for USB capture and streaming using software like OBS, Skype, Teams, VLC, Zoom, or vMix.

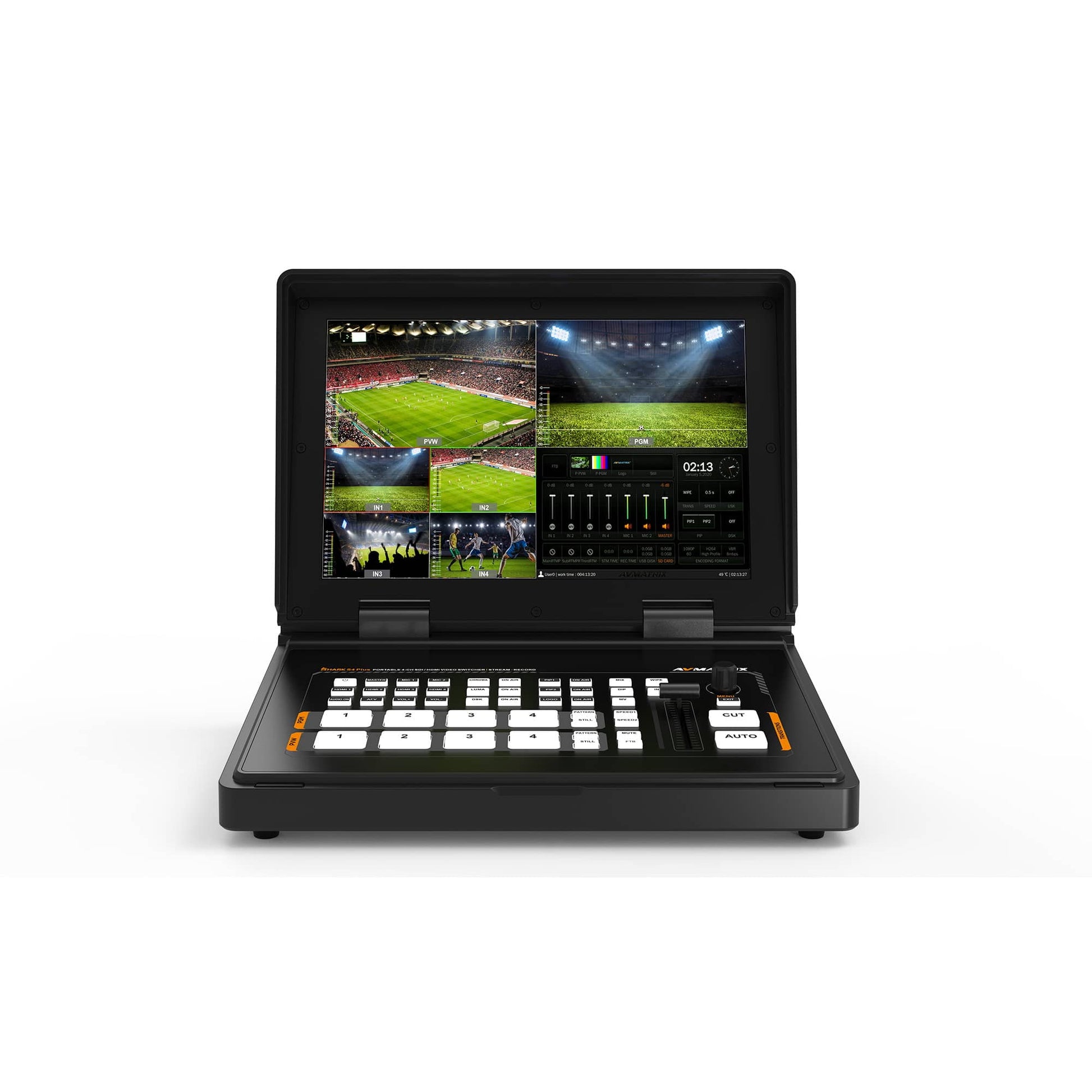

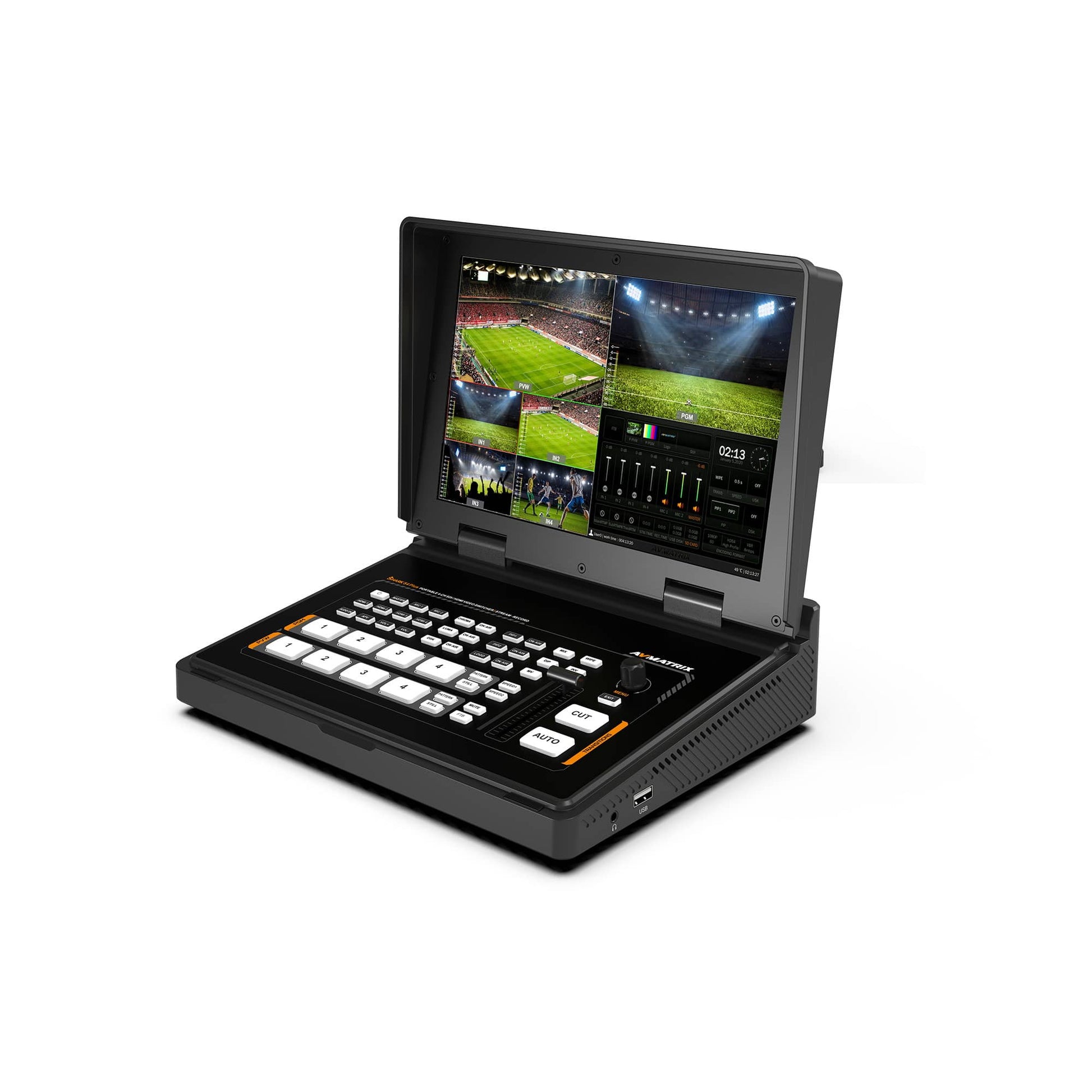

10.1" Full HD IPS Display

The switcher features a 10.1" 1920 x 1080 IPS LCD display that provides multiview, preview, program, audio meters, time clock, and menu configuration.

USB and SD Card Recording

Record your program to an SSD or flash drive in MP4 format using the USB-A recording output, or utilize an optional SD card for in the built-in SD card recording slot.

Live Stream via Ethernet

The LAN port supports IP streaming via RTMP or SRT protocols, allowing you to easily live stream to popular platforms such as YouTube, Skype, Facebook, Twitch, and more.

Software Remote Control

Offers easy control of all settings and operations through the control software, including transitions, audio configurations, media management, and more.

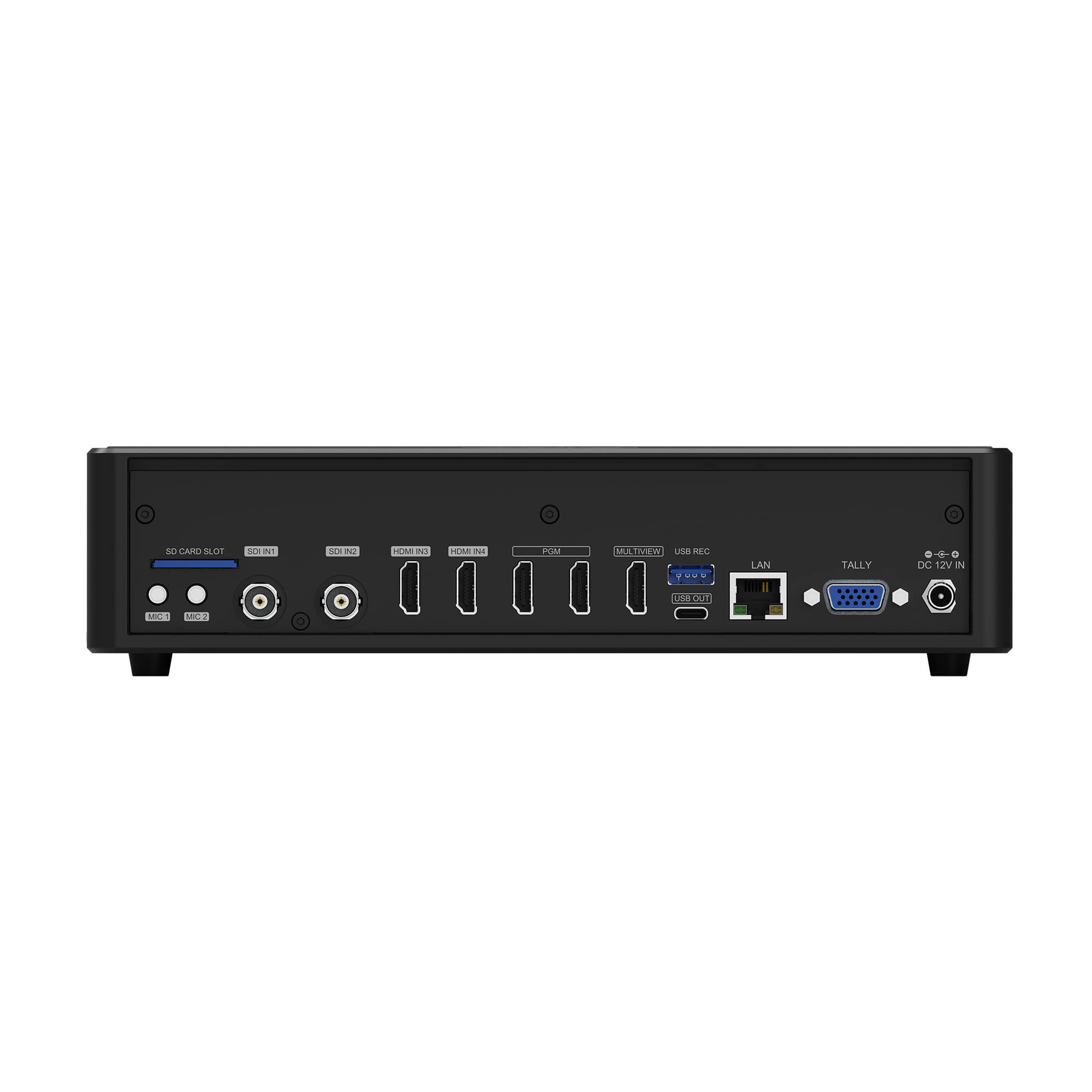

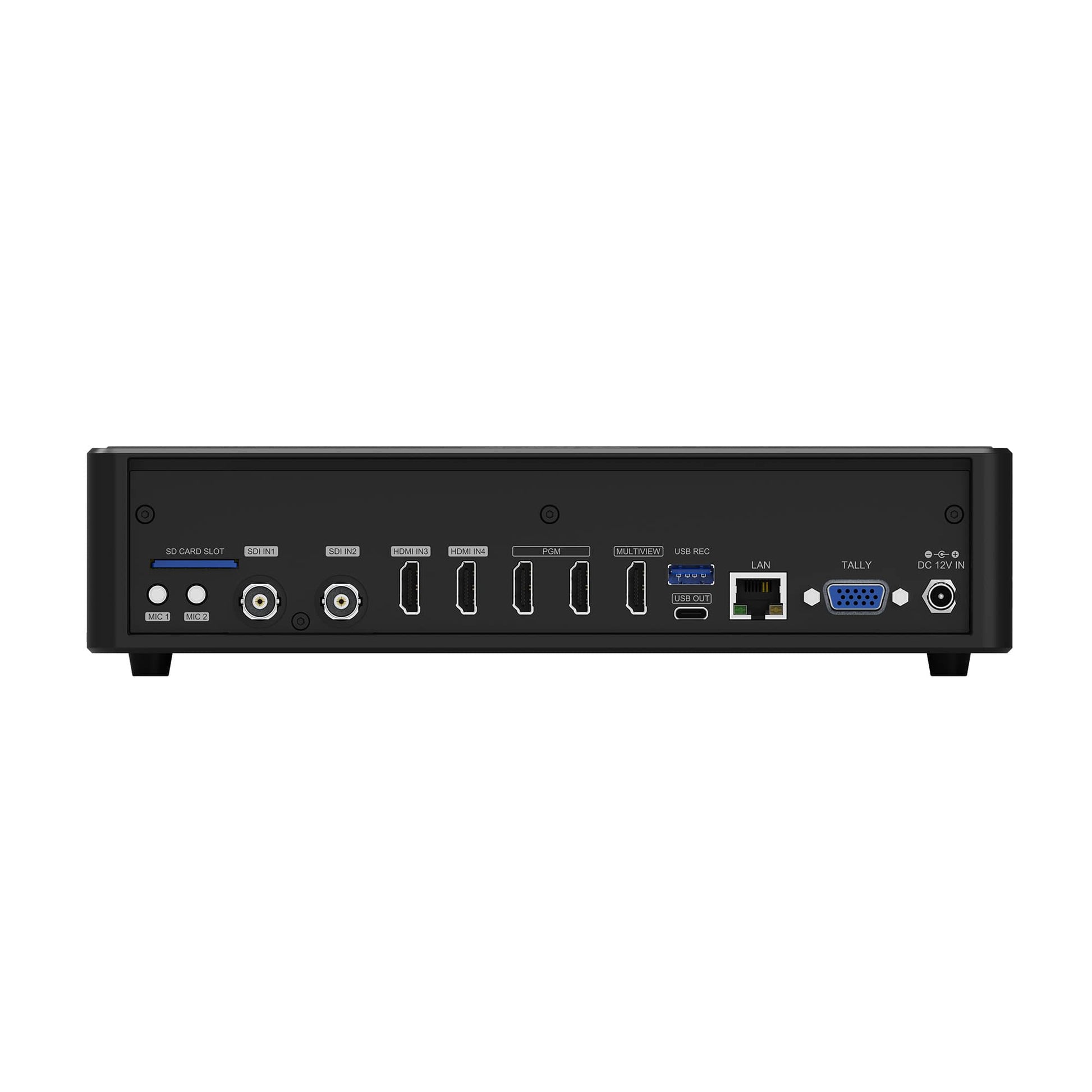

Multiple Interfaces

Multiple interfaces include two 3G-SDI inputs, two HDMI inputs, Program outputs, multiview output, audio inputs, streaming, and recording ports. The outputs can all be configured to pass input, preview, program, clean program, and color bars.
